Properties
Brand: Schluter® | Products included: DITRA-HEAT-MA mat, DITRA-HEAT-E-HK cable, DITRA-HEAT-E-R thermostat, junction boxes, conduit | Size options: 2.3m²/3.1m² (uncoupled), 1.8m²/2.6m² (heated wall area)

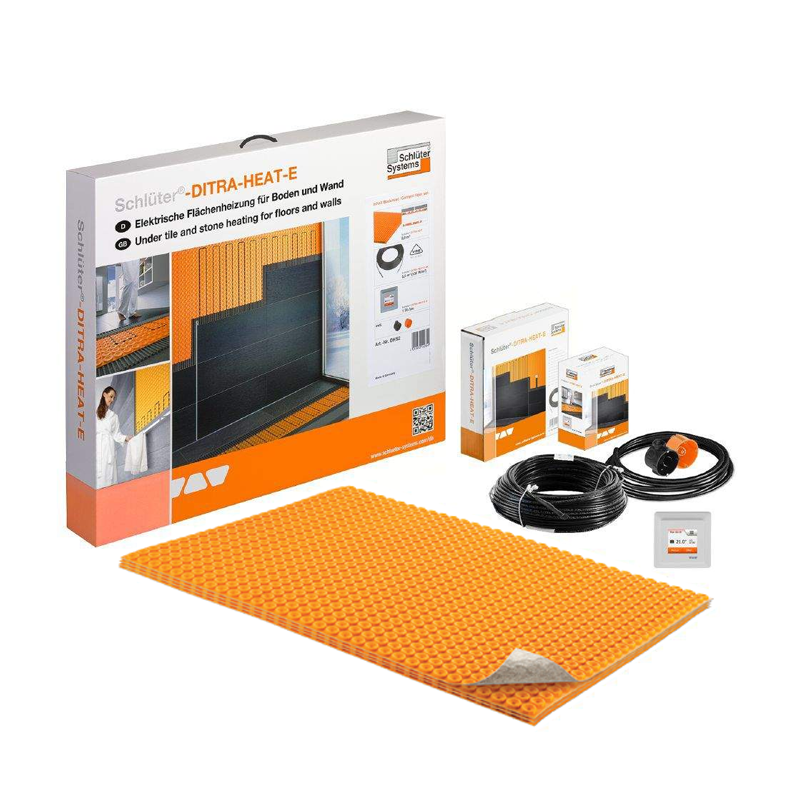

Schlüter®-DITRA-HEAT-E-Wall Set is a complete set for the electrical heating of wall coverings.
Included In The Set:
- Schlüter®-DITRA-HEAT-MA uncoupling mats
- Heating cable Schlüter®-DITRA-HEAT-E-HK (installation around every 2nd stud ≙ 200 W/m²)
- x1 Schlüter®-DITRA-HEAT-E-R touchscreen thermostat
- x2 Junction Boxes
-
x1 Conduit (3m)
Application
- Uncoupling membrane for heated wall tiles: A universal substrate for tile coverings, which serves as a bonded waterproofing, uncoupling, crack bridging, and vapour pressure equalization layer.
-
Heating cable installation: The membrane is designed for the attachment of the matching system heating cables for wall heating.
- Fast heat up & sound insulation: Thanks to its special anchoring fleece, the uncoupling mat facilitates a quicker heat-up response.
- Expandable area : If necessary, the uncoupled area can be expanded with additional Schlüter®-DITRA-HEAT-DUO membranes.
